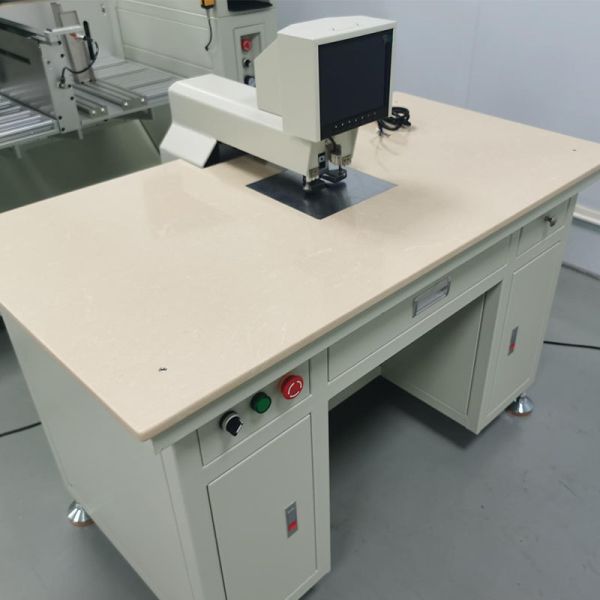

High Precision CCD Guide Hole Puncher with ±0.015mm Accuracy and 0.35s/hole Speed for 0.01-1mm Substrates

  • 1
  • 2
  • 3

Brand Name : SILITRON

Model Number : SLT15

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 30 per month

Packaging Details : L1360 x W880 x H1350 mm

Precision : ±0.015mm

Speed : 0.35s/hole

Substrate thickness : 0.01-1mm(base on material)

Hole diameter : Φ1－Φ5mm(customizable)

Contact Now

Applicable Industries
This guide hole punching machine it's widely used for PET, PC, PVC, IMI/IMD, polycarbonate, polyster film, plastic sheet, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, flex printed circuits, medical labels, graphic overlays, and other materials.

Punching Samples

High Precision CCD Guide Hole Puncher with ±0.015mm Accuracy and 0.35s/hole Speed for 0.01-1mm Substrates


Machine Features

  • High precision automatic target search with material quick locking system.

  • High Precision Servo Motor Control System.

  • Punch Accuracy : +/- 0.015mm.

  • Extremely fast punching action.

  • Super Powerful Punching Ability, Ideal for thick plastic materials or even thin sheet metal materials(SLTZ15).

  • Acrylic holding plate for easy material positioning

  • Large marble tabletop, very strong for good scratch resistance.

  • Special Lighting system for easy target recognition

  • Special durable punch head mechanism which allows quick tool-set changing and adjustment free.

  • User-friendly control interface with Color TFT LCD monitor

  • Pneumatic system for maximum reliability and minimum maintenance


Technical Parameter
Model SLT15
Dimension L1250 x W780 x H1150mm
Weight 200KG
Table size L1250 x W770mm
Punching force 2500N
Air pressure 0.4~0.8Mpa
Voltage AC 220V-240V 50HZ
Power 0.4kW
Precision ±0.015mm
Light source white and colors



Workable Marks

High Precision CCD Guide Hole Puncher with ±0.015mm Accuracy and 0.35s/hole Speed for 0.01-1mm Substrates High Precision CCD Guide Hole Puncher with ±0.015mm Accuracy and 0.35s/hole Speed for 0.01-1mm Substrates


Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
